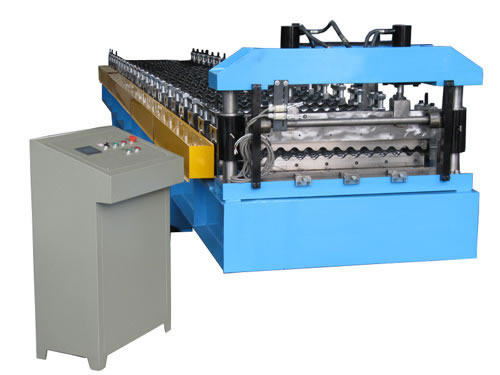

Corrugated Roll Forming Machine
Technical parameter Corrugated Roll Forming Machine:
Roll stations: 20stations
Diameter of shaft: ф75mm
Cutting system: hydraulic stop-to-cut
Cutting Length tolerance: 3±1.5mm
Working speed of Corrugated Roll Forming Machine: : 12--35m/min (not including the cutting time)
Thickness of Corrugated Roll Forming Machine: 0.28mm--0.8mm, G550Mpa tensile galvanized or prepainted steel sheet.

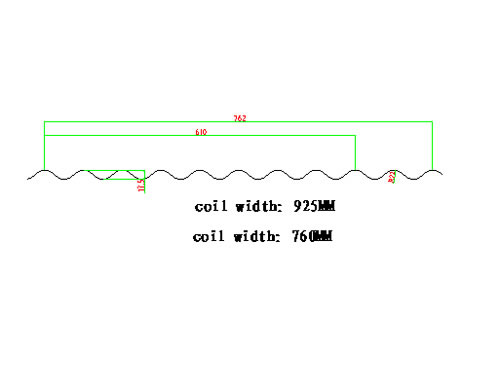

Coil input width size: 925mm
Material of roller: 45#, HRC45--52
Material of blade mould: Cr12, quenched 58-62
Yaskawa drive made in Japan,
Size of Corrugated Roll Forming Machine: approx 10.5m×1.5m×1.2m

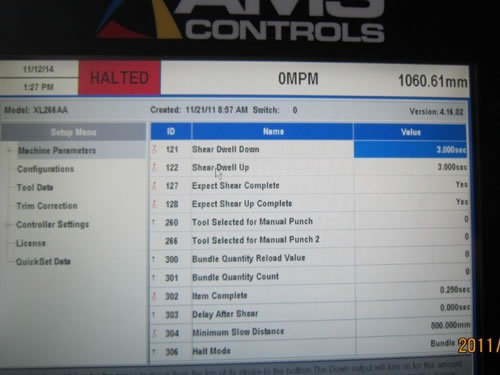

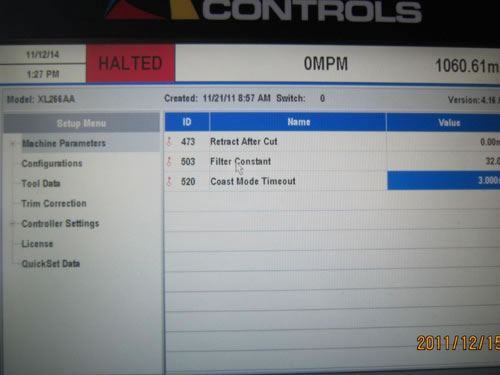

Way of control: AMS/PLC control
