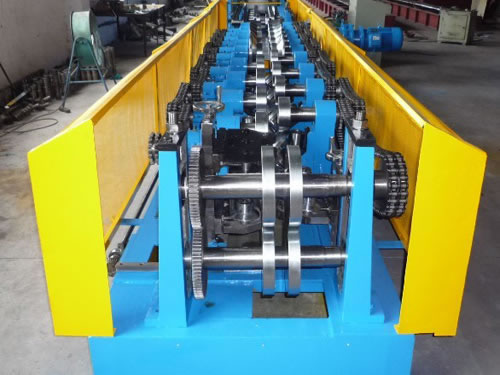

C/Z Interchangeable Roll Forming Machine
C-Z interchangeable machine adopts a special structure. The rollers for C & Z are changed very quickly without dismantle any parts. One machine can produce all specifications of C & Z purling and the widths and height can be adjustable automatically.
Standard Specification:
|
MODEL
|
Width(mm)
|
Height(mm)
|
Flange(mm)
|
Thickness(mm)
|
|
C80
|
80
|
40
|
15
|
1.5-3.0
|
|
C100
|
100
|
50
|
20
|
1,5-3.0
|
|
C120
|
120
|
50
|
20
|
1.5-3.0
|
|
C140
|
140
|
50
|
20
|
1.5-3.0
|
|
C160
|
160
|
60
|
20
|
1.5-3.0
|
|
C180
|
180
|
60
|
20
|
2.0-3.0
|
|
C200
|
200
|
60
|
20
|
1.5-3.0
|
|
C220
|
220
|
70
|
20
|
1.5-3.0
|
|
C250
|
250
|
70
|
20
|
1.5-3.0
|
|
C300
|
300
|
80
|
20
|
1.5--3.0
|
Main technical data of Roll Forming Machine:

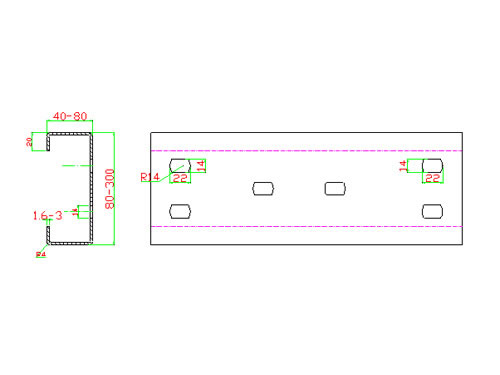

Purling specifications (automatically widths and height adjustment) of Roll Forming Machine:
For C purling: width: 80-300mm height: 40mm—80mm
For Z purlin: width: 100-300mm height: 40mm—80mm
Suitable material: 1.54-3.0mm, Q195~235 cold rolled steel, hot-zinc coil
Material of rollers: GCr15, 40Cr, quenched
Forming speed: 10-15 m/min
Main forming: 20 steps
Main motor: 15kW
Hydraulic motor: 5.5kW
Main dimension: 11000 x 1800 x 1800mm
Total weight: 14000kg

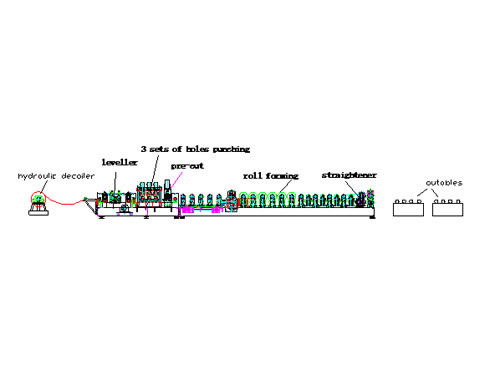

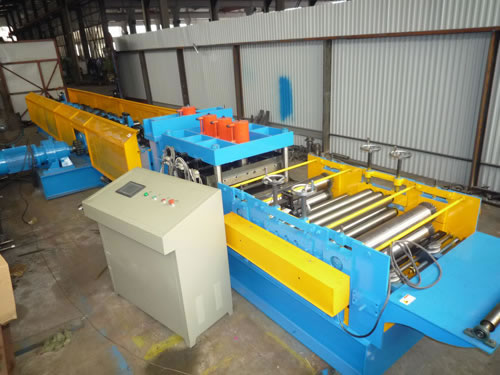

Flow chart of Roll Forming Machine:
Decoiler－feeding leveling－pre-punching (3 sets)—pre-cut－roll forming machine－outable
Decoiler picture:
