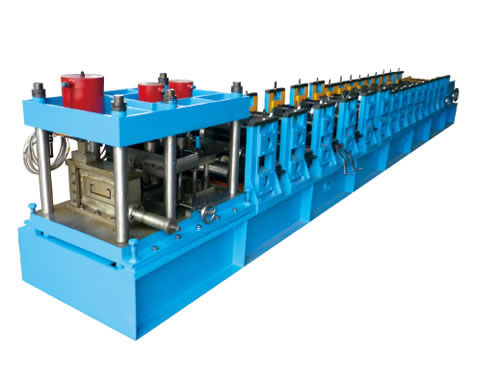

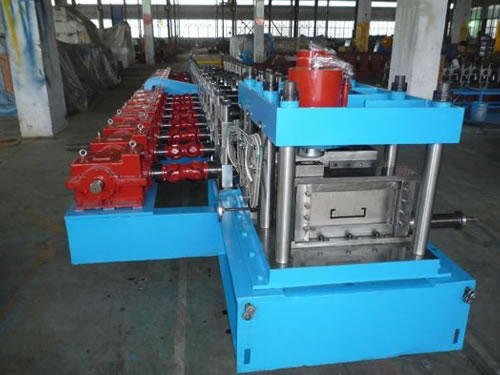

C Purling Forming Machine
Technical specifications:
Machine structure: heavy-duty stands or normal stands
Main motor power: 15kw
C Purling Roll Forming Machine Main shaft dia: ф80mm
material: 45﹟forge steel
roller material: GCR15 quenched HRC58°-62°
Roll station: 13stations plus 7 rolls leveling, 2 rolls for feeding
C Purling Roll Forming Machine Working speed: 12--15m/min (not including punching)
Transducer: Panasonic/Yaskawa
Way of control: PLC, Panasonic /Omron made in Japan
Computer operating panel: touching screen
Way of cutting; hydraulic mould cutting
Size of C Purling Roll Forming Machine: approx 11.0m×1.2m×1.0m
Changing the width and height by the spacers between the rollers
Mode of our C Purling Roll Forming Machine:
|
MODEL
|
H
|
B
|
B
|
C
|
T
|
|
C80
|
80
|
40
|
40
|
15
|
1.5-3.0
|
|
C100
|
100
|
50
|
50
|
20
|
1.5-3.0
|
|
C120
|
120
|
50
|
50
|
20
|
1.5-3.0
|
|
C140
|
140
|
50
|
50
|
20
|
1.5-3.0
|
|
C160
|
160
|
60
|
60
|
20
|
1.5-3.0
|
|
C180
|
180
|
60
|
60
|
20
|
1.5-3.0
|
|
C200
|
200
|
60
|
60
|
20
|
1.5-3.0
|
|
C220
|
220
|
70
|
60
|
20
|
1.5-3.0
|
|
C250
|
250
|
70
|
70
|
20
|
1.5-3.0
|
