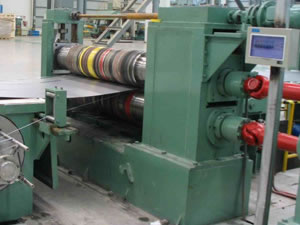

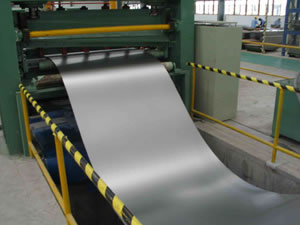

High Speed Thin Board Slitting Machine
Description:
Thin board high-speed slitting machine is one member of slitting machine line, which is used to shear metal material longitudinally and recoil the fillet. This thin coil sheet slitting machine is suitable for cutting material with thickness range within 0.2 mm~2.0mm, while a slitting speed up to 80m/min. what have to be stated is that, different profile is manufactured according to customers' idea, and different profile has different thickness range, but all thickness range should be within 0.2~2.0mm, and you can adjust any speed as you like within 0—80m/min.

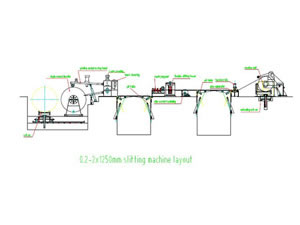

Flow chart of this slitting machine line:

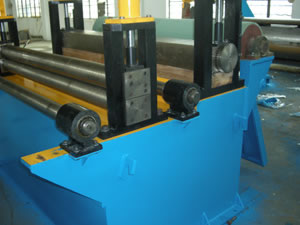

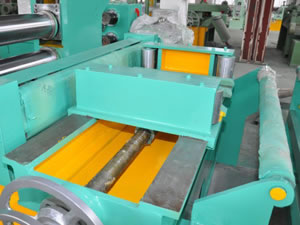

Hydraulic coil car→single mandrel decoiler→head-guiding head shovel and 2 rolls feeding →sheet head shearing machine→Pit(1)→deviation rectifying(sheet guiding)→slitting→side scrap recoiling→pit(2)→pre-separator and damping ,tensioning machine→coil recoiler→unloading coil car→hydraulic control →electrical control
Technical parameter data of slitting machine line:
Raw material: steel coil material, common carbon steel, galvanized steel or pre-painted steel
Coil thickness: 0.2mm--2.0mm (note: different profile is manufactured according to customers' idea, and different profile has different thickness range, but all thickness range should be within 0.2~2.0mm)
Coil diameter using this slitting machine line: ≤ ф2100mm
Coil width: 300mm--1250mm
Coil inner diameter: ф508, ф610
Coil weight when use thin board high-speed slitting machine: ≤15T
Way of slitting: stands round blade slitting:
Specification of slitting shaft: ф205mm×1250mm
Material of blades shafts: 40Cr hardened chrome and polishing
Material of blades: 6Crw2Si, hardened chrome HRC60—62degrees
Slitting motor power: DC55KW motor with joint coupling plus speed reducer
Slitting speed: 0--80m/min adjustable (You can adjust any speed as you like within 0—80m/min)
Slitting width accuracy of the thin board high-speed slitting machine: +/-0.03mm

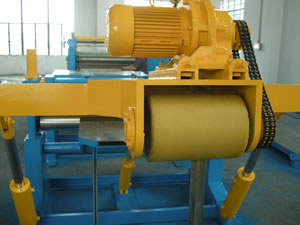

Damping and pre-separator (tension rolls):
Recoiling specification: ф508mm×1250mm
Separator discs: ф200mm×3mm, 65Mn q
Coil pushing arm power: ф80mm×1400mm
Power of recoiling: 75KW DC motor
Motor control: Euroasia control 590
Recoiling speed: 0--80m/min adjustable
Hydraulic control of Thin Board High-Speed Slitting Machine:
Hydraulic station 1 set
Pressure: 16Mpa
Power: 7.5kw-4
Electrical control of Thin Board High-Speed Slitting Machine:
Electrical cabinet 1 set
Operation cabinet 2 sets
Mitsubishi PLC
