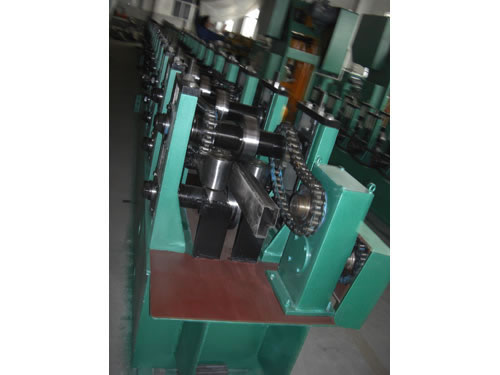

Step Beam Forming Machine
Technical parameter:
Main power: 26KW
Main roller stands tower: 22towers
Step Beam Forming Machine drive: Gearbox,
Diameter of shaft:￠80mm
Thickness of formed steel: 1.5－1.8mm, G250Mpa galvanized steel sheet or cold rolled steel
Material of the roller: Cr15.quenched HRC58-62
Material of shaft: 45Cr
Flying shear power: 5.5KW
Way of cutting of Step Beam Forming Machine: saw flying shear
