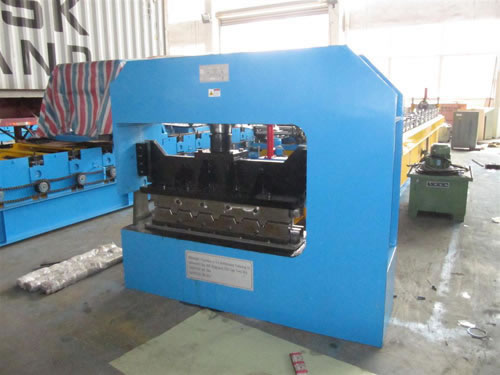

Cranking Machine
Technical parameter:
Method of control: PLC control, Panasonic
Main motor power:0.8KW servo motor (Yaskawa)
Hydraulic power: 7.5 kW
Curing degree: ≤1200
Dimensions of Cranking Machine:3000mm×1400 mm×1400 mm
Thickness of cranking machine: 0.27--0.8mm
Material of punching: Cr12qunched 58-62 degrees hard chromated
Note:
Encoder controls the depth of the cranking moulds.
Wuxi Hai Roll Fone Science & Technology Co.,Ltd is a professional manufacturer and supplier of cranking machine, slitting line, cut to length line machine and related metal sheet processing equipment in China. Cranking machine solves the problem of roof leakage that conventional machine can not be able to handle with. And also, the cranking machine are national inspection-exempted products after external supervision and sampling inspection.
