Pipe Welding Machine
Model:
ZY16, ZY20, ZY32, ZY50, ZY76, ZY114, ZY165, ZY219, ZY273, ZY325

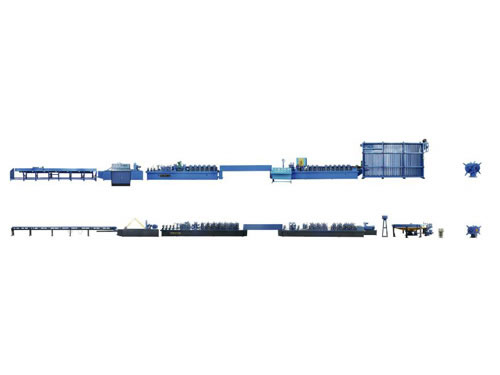

Description of Welding Pipe-Making Line:
This high frequency pipe welding machine made in our company is introduced by the advanced technology from U.S., Japan and Taiwan etc. This precision high frequency welding pipe-making machine can make welded pipes with pipe diameter from 7.5mm to 50mm. There are ZY16, ZY20, ZY32, ZY50, ZY76, ZY114, ZY165, ZY219, ZY273 and ZY325 suite for different pipe diameter. Those machines are well praised by clients from more than 20 regions and countries, such as Taiwan, Middle East and so on. Annual production capacity of this pipe weld machine (welding pipe making line) is 150 sets.
What's more, there are well-trained, experienced technicians that can design a welded pipe-making equipment of international standard and meet different needs. For more information of welding pipe-making line, please contact us.
Product introduction of this Pipe Welding Machine:
|
Equipment Type
|
ZY16
|
ZY20
|
ZY25
|
ZY32
|
ZY45
|
|
Manufacturing pipe diameter
|
ф7.5-16mm
|
ф10-25mm
|
ф10-28mm
|
ф13-38mm
|
ф16-50mm
|
|
Manufacturing thickness
|
0.3-1.0mm
|
0.3-1.0mm
|
0.5-1.5mm
|
0.6-1.8mm
|
0.7-2.0mm
|
|
Producing speed
|
0-90m/min
|
0-90m/min
|
0-9.0m/min
|
0-90m/min
|
0-80m/min
|
|
Main engine power
|
22kw
|
37kw
|
45kw
|
75kw
|
132kw
|
|
High frequency power
|
60kw
|
60kw
|
100kw
|
100kw
|
150kw
|
Main
functions of this Pipe Welding Machine:
ZY16 welding Pipe-making line mainly applies in manufacturing electronic heating pipes and refrigerators pipes and suitable sizing thin-wall pipes.
ZY16 Pipe-making machine line mainly applies in manufacturing thin-wall pipes.
ZY25, ZY32, ZY45 Pipe-making machine line mainly applies in manufacturing frame-tubes and fitness equipment tubes.

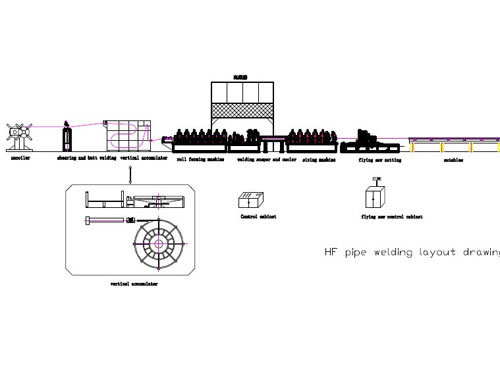

Basic components:
Double-head decoiler
Shearing butt welding (customer self-assembly)
Looper-forming machine-high frequency welding-removing outter burrs
Pipe Welding Machine Sizing mill
Sipping and standing straightening
Computer sawing
Blanking frame
|
Equipment Type
|
ZY50
|
ZY60
|
ZY76
|
ZY89
|
|
Manufacturing pipe diameter
|
ф20-63.5mm
|
ф25-76mm
|
ф32-89mm
|
ф35-100mm
|
|
Manufacturing thickness
|
0.8-2.75mm
|
1.0-3.2mm
|
1.2-3.75mm
|
1.2-4.0mm
|
|
producing speed
|
0-70m/min
|
0-70m/min
|
0-70m/min
|
0-65m/min
|
|
Main engine power
|
150kw
|
180kw
|
264kw
|
264kw
|
|
Main engine power
|
200kw
|
250kw
|
300kw
|
300kw
|
Main functions:
ZY50, ZY60, ZY Pipe-making machine line mainly applies in manufacturing frame-tubes and fitness equipment tubes.
ZY50 Pipe-making machine line mainly applies in manufacturing structural tube.
Basic components of this welding Pipe-making line:
Double-head decoiler
Shearing butt welding (customer self-assembly)
Pipe Welding Machine Loopier
Forming machine
High frequency welding
Removing outter burrs- sizing mill
Turkey straightening
Computer sawing
Blanking frame
Parameter of this welding Pipe-making line:
|
Equipment Type
|
ZY125
|
ZY165
|
ZY219
|
ZY273
|
|
Manufacturing pipe diameter
|
ф50-130mm
|
ф76-165mm
|
ф89-219mm
|
ф100-273mm
|
|
Manufacturing thickness
|
2.0-5.0mm
|
2.0-6.0mm
|
4.0-8.0mm
|
4.0-12mm
|
|
producing speed
|
0-45m/min
|
0-45m/min
|
0-40m/min
|
25m/min
|
|
Main engine power
|
370kw
|
400kw
|
400kw
|
640kw
|
|
High frequency power
|
400kw
|
500kw
|
600kw
|
800kw
|
Main functions:
ZY125, ZY165, ZY219, ZY273 Pipe-making machine line mainly applies in manufacturing API pipe, pressure transmission pipeline, pressure tubing (penstock) and structural tube.
Basic components of this Pipe Welding Machine
:
Double-head decoiler
Wrapper rolling
Head-straightening
Leveling-shearing butt welding (customer self-assembly) looper
Forming machine-high frequency welding removing outter burrs
Sizing mill
Computer sawing-blanking frame
The forms of specification of
all kinds of high precision welded steel tube
Round Tube
|
Φ8
|
Φ9
|
Φ9.5
|
Φ10
|
Φ11
|
Φ12
|
Φ12.7
|
Φ13
|
|
Φ14
|
Φ15
|
Φ15.8
|
Φ16
|
Φ17
|
Φ18
|
Φ19
|
Φ21
|
|
Φ22
|
Φ22.2
|
Φ23.8
|
Φ25.4
|
Φ27/27.3
|
Φ28.6
|
Φ31.8
|
Φ32
|
|
Φ34/35
|
Φ36
|
Φ38.1
|
Φ42.5
|
Φ48/49
|
Φ50
|
Φ50.8
|
Φ54.5
|
|
Φ60/60.6
|
Φ63.5
|
Φ76.2
|
Φ18.5
|
Φ24.5
|
|
|
|
Square Tube
|
□8×8
|
□9.3×9.3
|
□12.7×12.7
|
□16×16
|
□16.3×16.3
|
□18×18
|
|
□19×19
|
□20×20
|
□21×21
|
□22×22
|
□22.2×22.2
|
□25×25
|
|
□25.4×25.4
|
□30×30
|
□33.4×33.4
|
□32×32
|
□38×38
|
□40×40
|
|
□42×42
|
□45×45
|
□50×50
|
□60×60
|
|
|
Rectangular Tube
|
□6×10
|
□9×30
|
□10×16
|
□10×20
|
□10×18
|
□10×26
|
|
□12.7×38.1
|
□12.7×25.4
|
□13×26
|
□15×30
|
□15×45
|
□15×50
|
|
□20×30
|
□20×40
|
□17.2×42.6
|
□19×38.5
|
□23×53
|
□25×50
|
|
□25.4×50.8
|
□30×60
|
□38×50
|
□40×70
|
□40×80
|
□25.4×76.2
|
|
□14×20
|
□11.7×11.7
|
□30×70
|
|
|
|
Level Elliptic/Oval Tube
|
12.5×25
|
15×23
|
15×30.5
|
15×45
|
15×50
|
10×60
|
|
10×70
|
20×33.5
|
10×30
|
20×40
|
20×60
|
30×70
|
|
40×70
|
40×80
|
50×100
|
10×19
|
11.6×17.8
|
16.5×34
|
Elliptic Tube
|
9×16
|
10×17
|
6×33
|
38.8×89
|
18.7×28.7
|
20×26.6
|
Bread Tube
|
16×14.4
|
18.4×20
|
12.5×25
|
24.8×39.7
|
35×40
|
|
More Description :
The specification about removing inner burrs: Φ27.3×1.5Φ34×1.8 Φ43.2×2.0 Φ49×2.0 Φ60.6×2.0 Φ28.6×0.9
Some abnormal tubes of Portional special specifications may be determined by the specific drawings.
