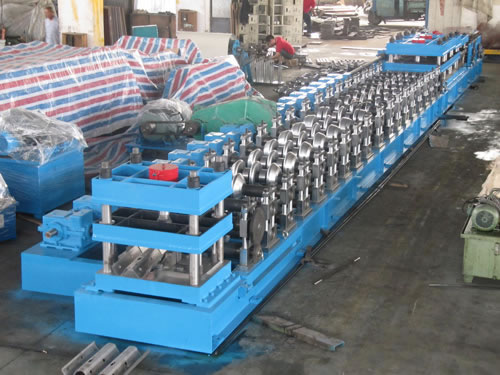

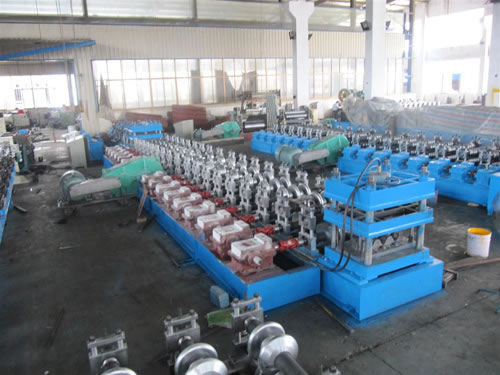

Guardrail Forming Machine

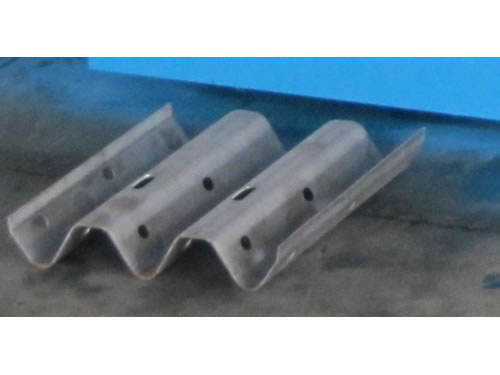

It's one type of the cold roll forming machine, the plastic forming processing machine that is used to make specific section profiles. The size drawing of holes punching in this guardrail roll machinery can be designed according to the customer's requirement.
Technical parameters:
Material thickness: 2－4mm cold rolled steel or galvanized steel

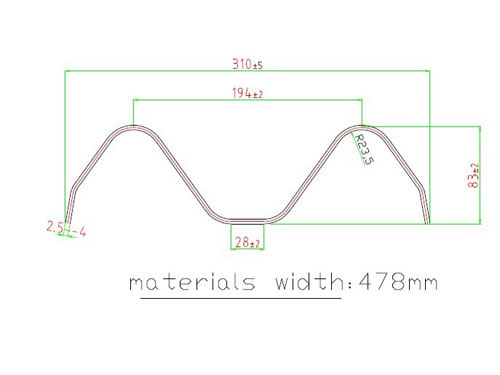

Coil width of Guardrail Forming Machine: 478mm
Main motor power of this Guardrail Roll Machinery: 45kw
Main drive: joint coupling drive (gearbox for each roller station
Main shaft dia: ф100mm
Material: 45 forge steel is suitable to this Guardrail Roll Machinery
roller material: GCR15 quenched 58°-62°
Roll station of this Guardrail Forming Machine: 17stations
Working speed: 5m--12m/min (not including punching)
Way of control: PLC, Panasonic
Computer operating panel: touching screen

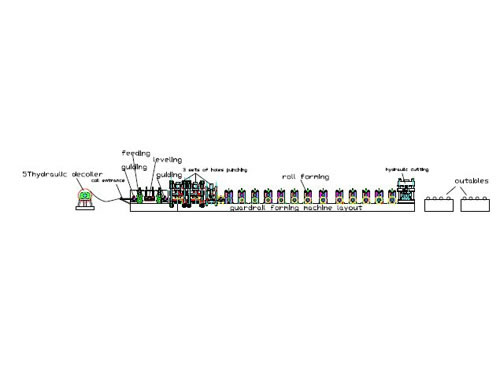

The components of the whole line
5T hydraulic decoiler/5T manual decoiler roll forming Machine (feeding, leveler and guiding)
3 sets of holes punching units PLC cabinet
Hydraulic station
2 simple run out tables
