Z Purlin Forming Machine
Technical parameter:
Main power: 18.5KW
Forming station: 16 stations and 5 rolls are for leveling
Z Purlin Roll Forming Machine Diameter of shaft: ф80mm

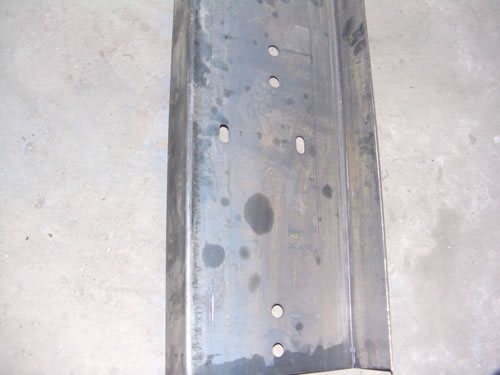

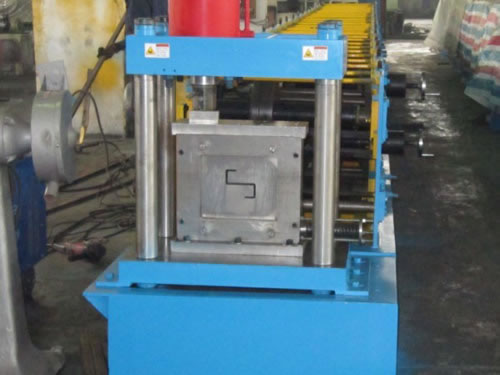

Cutting system: hydraulic
Tolerance: 3m±1.5mm
Speed: 12-15m/min (Not including cutting)
Material of the rollers: GCr15, hard chromed 58--62degrees
Material of shaft: GCr15 steel, quenching HRC58○-60○
Material of blade and punching mould: Cr12, quenched 58-62
Z Purlin Roll Forming Machine Transducer: Panasonic made in Japan
Hydraulic main motor: 7.5kw
Cutting pressure: Max.20Mpa
Control system: PLC, Panasonic
Z Purlin Roll Forming Machine Rolled thickness: 1.5mm--3mm
Size of machine: approx 13.2m×1.4m×1.2m
Z Purlin Roll Forming Machine Way of drive: chain drive
Electrical requirements: 380V, 50Hz, 3Ph or according to the customer's local standard

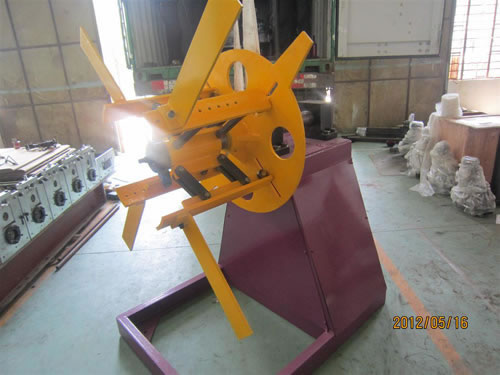

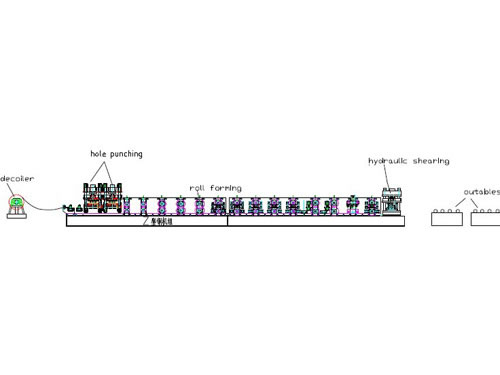

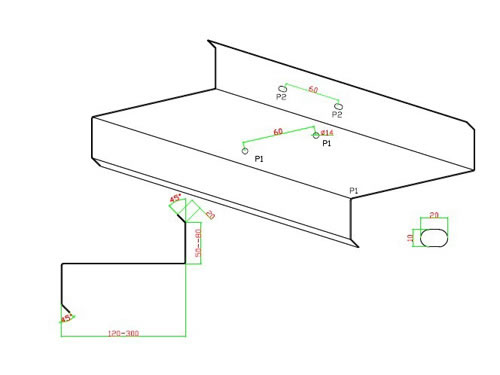

Model:
|
MODEL
|
H
|
B
|
B
|
C
|
T
|
|
Z145
|
145
|
60
|
60
|
20
|
1.5-3.0
|
|
Z180
|
180
|
67
|
61
|
20
|
1.5-3.0
|
|
Z200
|
200
|
67
|
61
|
20
|
1.5-3.0
|
|
Z230
|
230
|
72
|
77
|
20
|
1.5-3.0
|
|
Z250
|
250
|
78
|
72
|
20
|
1.5-3.0
|
|
Z300
|
300
|
78
|
72
|
20
|
1.5-3.0
|
