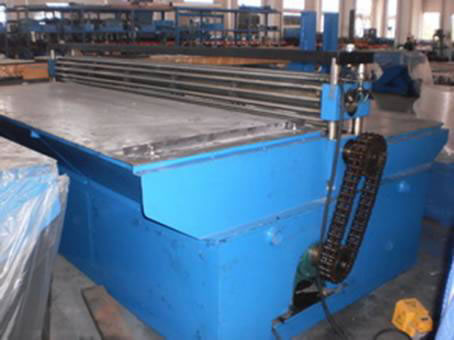

Side Feeding Barrel Corrugation Machine

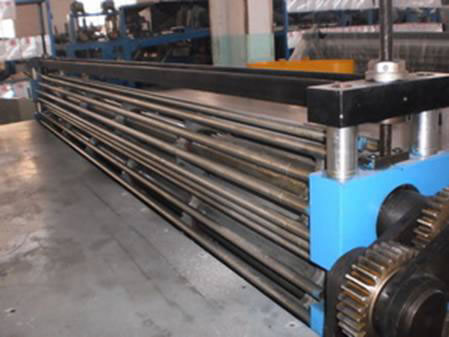

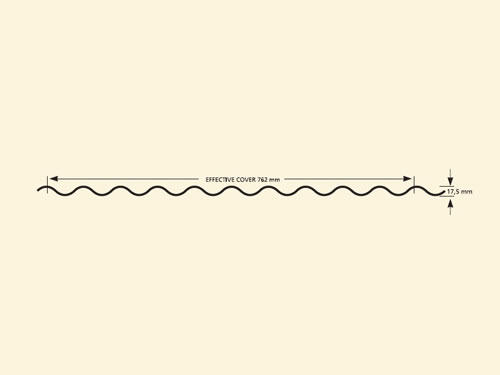

It's one type of Wall/Roof Panel forming machine. The machine has 2 rolls to produce the profiles and the 2 rolls can be adjustable to the wave height and different materials.
Technical parameter:
Material: PPGL, PPGI, GL, GI, and G550Mpa
Thickness; 0.1mm--0.8mm
Length 1.8m--3.0m, adjustable
Power; 11kw motor made in china
Roll material: 45#, fine processment
Side Feeding Corrugation Machine Rolls diameter: 340mm
Speed: 5pcs of sheet each 5 seconds
PLC control, Omron
ABB inverter control
Wuxi Hai Roll Fone Science & Technology Co.,Ltd is a professional manufacturer and supplier of roll forming equipment (Side Feeding Corrugation Machine), slitting line, cut to length line machine and related metal sheet processing equipment in China. Forming equipment solves the problem of roof leakage that conventional machine can not be able to handle with. And also, the forming machines are national inspection-exempted products (Side Feeding Corrugation Machine) after external supervision and sampling inspection.
