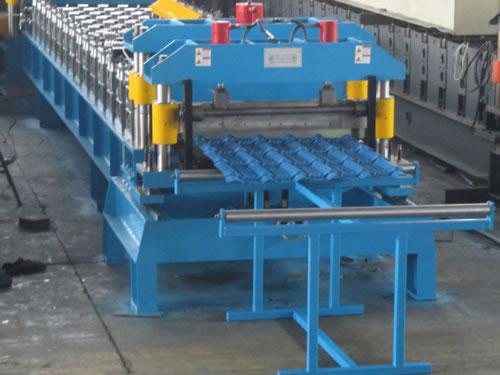

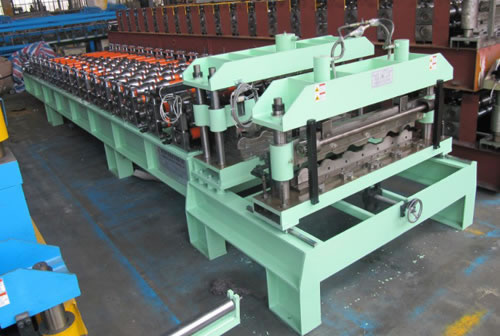

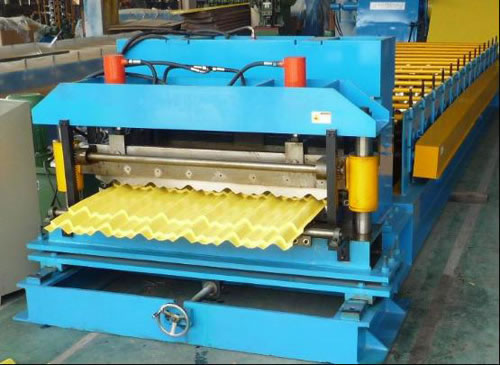

Glazed Tile Forming Machine
It's one type of Wall/Roof Panel forming machine. The typical point that will make you satisfied is no abrading on the surface. The machine can be running forward or reversed by inverter control.
Technical parameter:
Roller station: 16 stations (1station is film covering unit)
Size of machine: approx 8.5m×1.7m×1.4m
Tile Roll Forming Machine Rolling speed: 7-8m/min
Hydraulic power: 5.5KW
Cutting blade material: Cr12, quenched 58-62

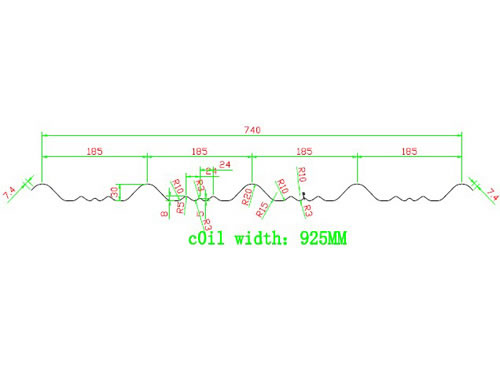

Sheet thickness: 0.4-0.6mm pre-painted steel, G300Mpa
Chrome plated 0.05mm on the surface of rollers
Tile Roll Forming Machine Material of roller: 45#forge steel
Material of blade: Cr12, quenched 58-62
Yaskawa Transducer made in Japan
Tile Roll Forming Machine Computer: PLC, Omron
5T Hydraulic and electrical decoiler
Way of decoiling: single head decoiling, hydraulic inner expansion
Specification: Φ508×1000mm
Range of contracting and expansion:Φ460－Φ520mm
loading capacity: ≤5T
Tile Roll Forming Machine Motor power;4KW
Hydraulic pressure;12Mpa

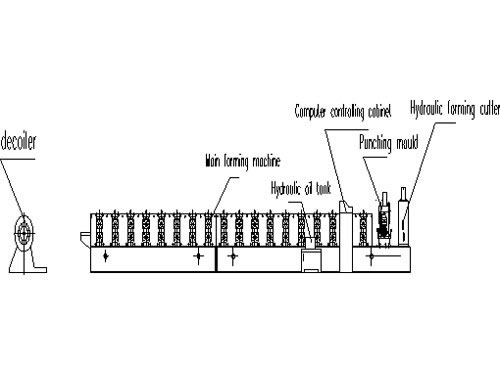

Components of Tile Roll Forming Machine:
5T hydraulic decoiler
Roll forming machine
Hydraulic station
PLC cabinet
Hydraulic shear
Pressing unit
Output table (2)
Flow chart:
Hydraulic Decoiler—feeding—forming—pressing—cutting－outables
