PU Rolling Shutter Door Forming Machine
Description:

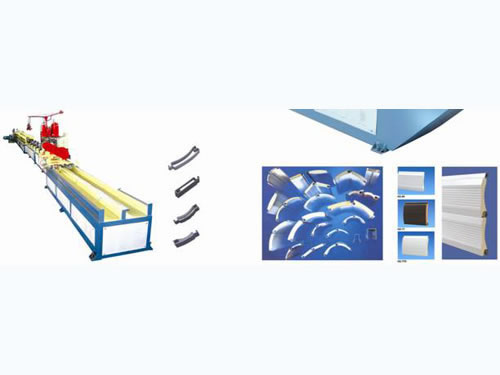

This PU sandwich panel line is suitable for making polyurethane panel with aluminum sheet.0.26~0.40mm.. This PU production line consists of forming machine, punching device, PU Foaming machine, PLC Control system, and so on.
Components of Polyurethane Production Line
Un-coiler
Leveling device
Main forming machine
PU Foaming machine
Adjusting device
Punching device
Pneumatic following cutting device
PLC Control system
Finished product shelf
Technical parameter:

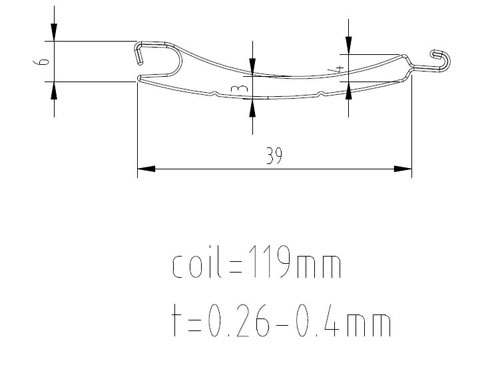

Suitable plate: 39 depends on the customer's profile drawing, alumnium sheet.0.26－0.40mm
PU sandwich panel line working speed: 15 m/min
Polyurethane Production Line Steps: 40
Material of roller: GCr15 advanced steel, precision-machined, high frequency quenching HRC58-62
Material of main roller: #45 advanced steel (Diameter: ф40)
Driven: Gear, Gimbals
PU sandwich panel line main power: 7.5KW
Cutting: Pneumatic following cutting
Material of cutting knife: Cr12Mov, Quench HRC58-62
Cutting power: 2.2KW
The whole machine is controlled by industry computer-PLC. Including:
Polyurethane Production Line PLC: PANASONIC (made in Japan)
Touch screen: PANASONIC (made in Japan)
PU sandwich panel line transducer: PANASONIC (made in Japan)
Dimension of the whole line: 37000mm×700mm×900mm
Polyurethane Production Line Weight: Approx. 12 Ton

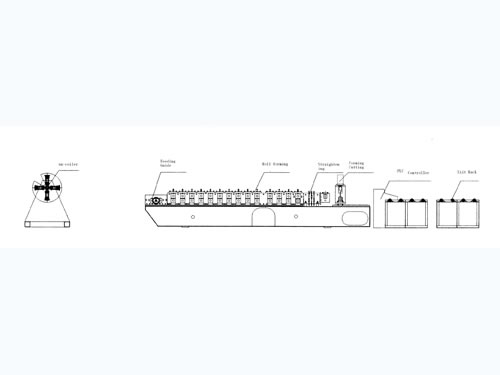

The flow chart of the PU sandwich panel line:
Uncoiler→ Feeding guide equipment→ Roll-forming Machine→ Foaming machine →Adjusting device → Punching device→Flying saw cutting→ finished products on stacker
