Simple Slitting Machine
Description
It's another member of slitting machine line, which are used for shearing Cr12 forged steel longitudinally and recoiling the fillet. The shining point of this forged steel slitting line is that it adopts 0.3—1mm×1225mm hydraulic slitting and makes the 0.3mm-1.0mm steel coil cutting simple and easy.
Main Specifications of Steel Slitting Machine:
Material width: 1200mm, thickness: 0.3--1.0mm
Slitting speed of forged steel slitting line: 12--15m/ min
Slitting material: Cr12 forged steel with quenched and CNC processment
Material of shafts: 45# steel fine processment
Forged steel slitting line main motor power: 7.5KW
Hydraulic station of Steel Slitting Machine: 4kw
Electrical system: PLC control, Omron made in Japan

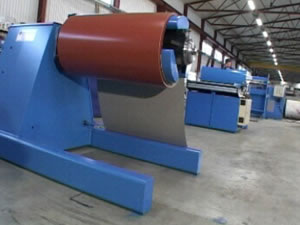

Hydraulic decoiler capacity of the Steel Slitting Machine: ≤5tons, inner diameter 508mm
Forged steel slitting line electricity requirements: 380V, 3phase, 50Hz
2 rubbers for feeding

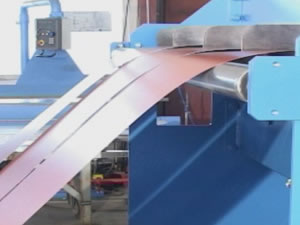

Side waste rewinding for both sides
Approx size: 9000mm×1500mm×1400
Forged steel slitting line Max slits: 9slits

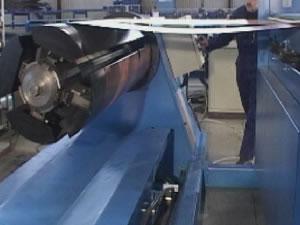

Way of slitting: round disk slitting
Motor for hydraulic decoiler: 4 KW
Specification of Decoiling:
ф508mm×1300mm
Expansion range of the Steel Slitting Machine: 450mm—550mm

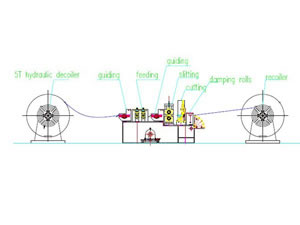

Flow Chart of forged steel slitting line:
5T hydraulic Decoiler—Slitting Part —Separator Part—Recoiled
