Thick Board Slitting Machine
Description:
It is one member of slitting machine line, which are used for cutting metal material longitudinally and recoil the fillet. This thick coil sheet slitter is suitable for slitting coil sheet with thickness range from 2~12mm, and for coil diameter less than ф2000mm. Thick board slitting line is mainly applied for cutting material such as steel coil, carbon steel, galvanized steel pre-painted steel and the like.

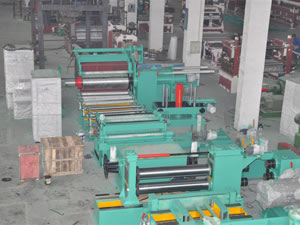

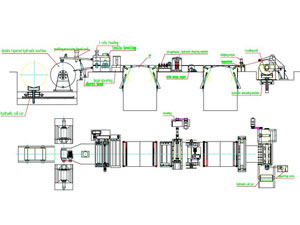

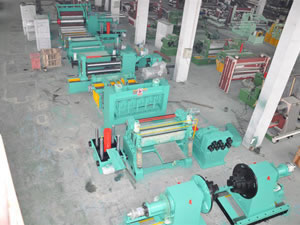

Flow Chart for our coil sheet slitter:

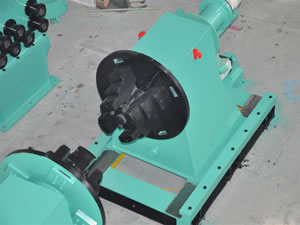

Hydraulic coil car→double tapered decoiler→head-guiding head shovel and pairs of rolls feeding→head shearing→deviation rectifying→slitting→side waste recoiled→bridge→pre-separator and tensioning machine→recoiled→unloading coil car→hydraulic control→electrical control
Specification:
Product introduction:
Raw material: Steel coil grade: common carbon steel, galvanized steel or prepainted steel
Coil thickness: 2--12mm
Coil diameter: ≤ ф2000mm
Coil width: 600mm--2000mm
Coil inner diameter: ф508, ф610, φ760
Coil weight for thick board slitting machine: ≤ 35T
Technique Parameter Data:

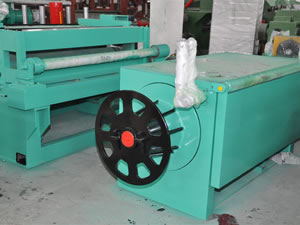

specification of Coil feeding rolls: ф210mm×2000mm
2 rolls feeding and 5 rolls leveling
Material of pinch rolls: down rolls 40Cr heat processment, HR55--56
Liner speed of this coil sheet slitter: 12m/min
Specification of slitting shaft: ф300mm×2000mm
Material of shaft thick board slitting machine: 40Cr hardened chrome
Round disc blade: D500×d300×T25mm
Material of blades: 6CrW2Si, HRC56--57 degrees
Slitting transmission: AC 160kw cycloidal gear decelerator with joint coupling driven
Slitting speed of coil sheet slitter: 0--30m/min adjustable
Slitting width accuracy: +/-0.03mm
Slitting piece specification: 5--7mm 10pcs, 8--10mm 6pcs 1--12mm 4pcs
Pre-separator shaft dia: ф210mm×2000mm
Leveling rolls material: 40Cr

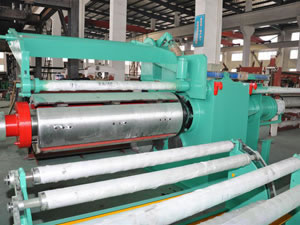

Power of recoiling: 200KW DC motor
4recoiling speed: 0--30m/min adjustable
Recoiling controller: Euroasia controller 590
Recoiling capacity of the coil sheet slitter: ≤35T
Hydraulic control of our coil sheet slitter for thick sheet
Power: 11kw-4
Pressure: 16Mpa
Electrical operation cabinet 1set
PLC control
Total power of thick board slitting machine: 440KW
