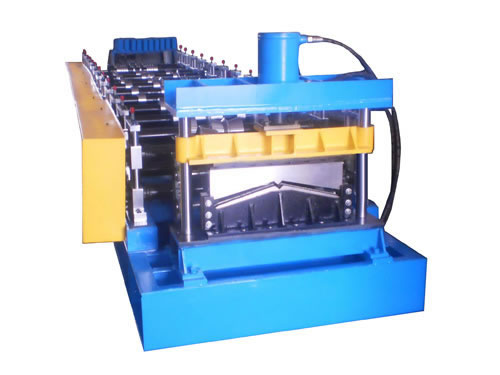

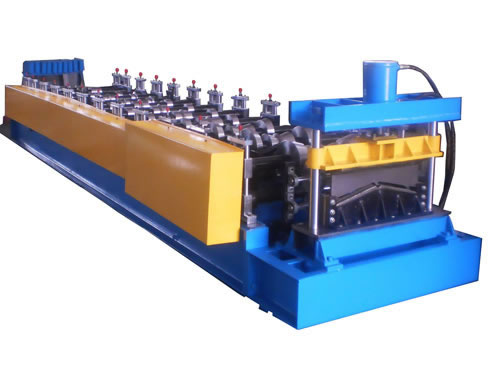

W Valley Machine
Technical parameter:
Standing Roller station: 12stations
Size of machine: approx 6000mm×800mm×1200mm
Working speed: 12--18m/min
Shaft diameter: 60mm
Way of cutting: hydraulic cutting
Cutting blade material: Cr12
Sheet thickness: 0.3mm--0.6mm (normal steel)

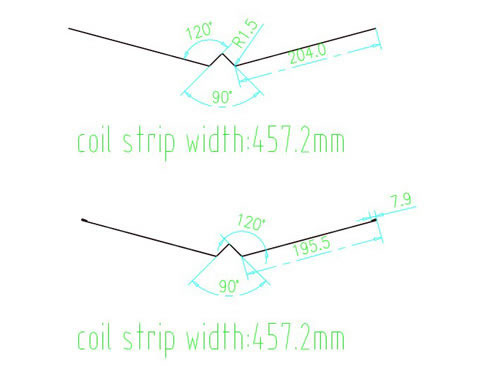

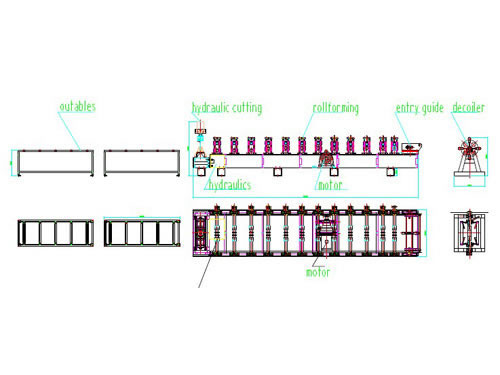

Flowchart of W Valley Profile Forming Machine:
Decoiler—feeding--roll forming—hydraulic cutting
Wuxi Hai Roll Fone Science & Technology Co.,Ltd is a professional manufacturer and supplier of valley profile forming machine, cut to length line machine and related metal sheet processing equipment in China. Forming equipment solves the problem of roof leakage that conventional machine can not be able to handle with. And also, the forming machines, valley profile forming machines are national inspection-exempted products after external supervision and sampling inspection.
